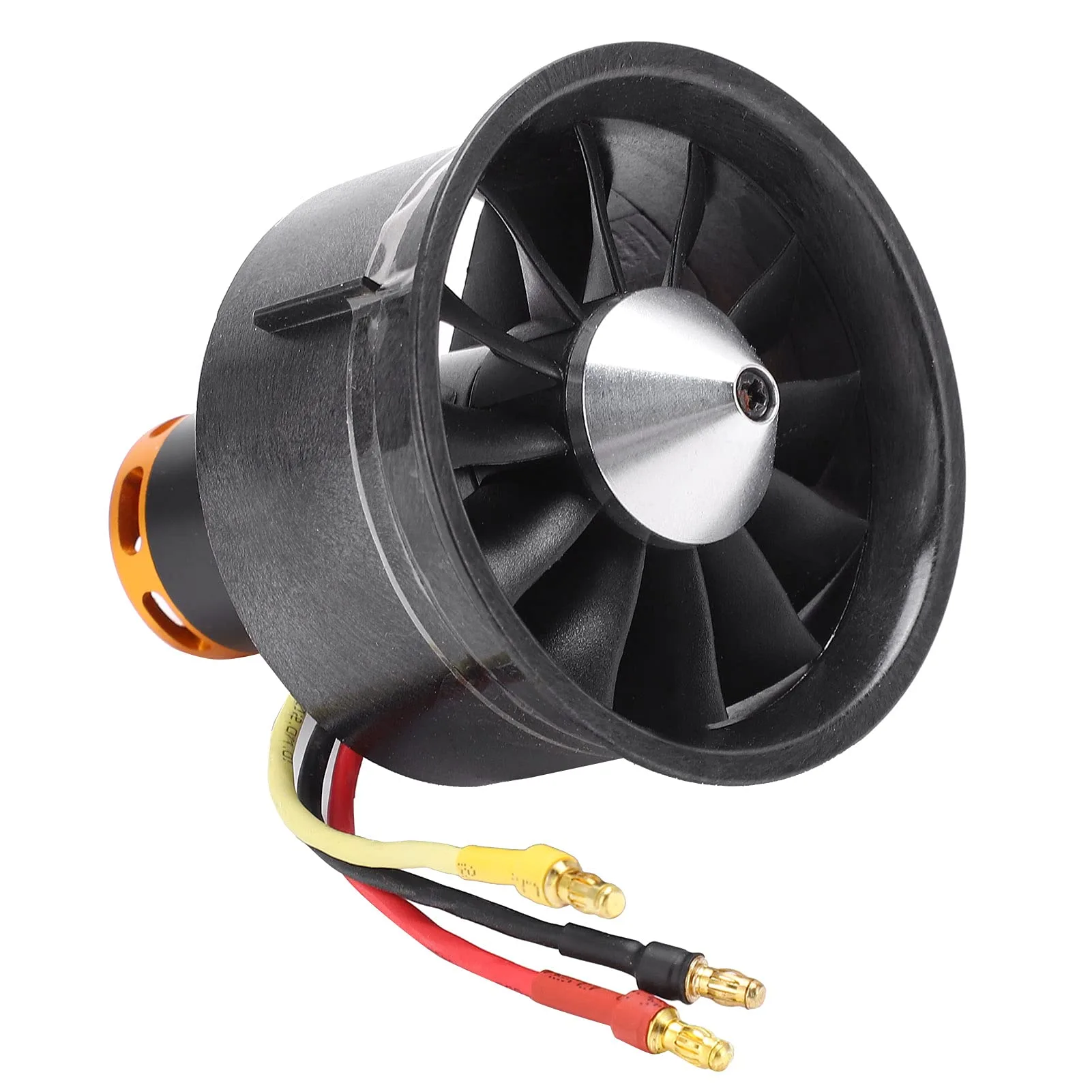

Power up your RC jets with the QX Motor 64EDF 12 Blades Electric Ducted Fan (QF2822-3500KV)
engineered for speed, efficiency, and maximum thrust. This EDF system features a high-performance 3500KV brushless motor paired with 12 precision-designed blades, providing smooth, high-speed performance. It’s perfect for EDF jets and high-speed RC models, delivering the power you need for thrilling flights. Whether you’re racing or practicing aerobatics, the 64EDF offers enhanced airflow efficiency, superior cooling, and reliable durability for demanding RC enthusiasts. Available now at FlyingMachines.in, it’s a must-have for those looking to upgrade their RC planes for ultimate performance!
Technical Data:
- Fan Diameter: 64mm
- Motor Model: QX Motor QF2822-3500KV
- Blade Count: 12
- Motor Type: Brushless Outrunner
- KV Rating: 3500KV
- Input Voltage: 3S to 4S LiPo (11.1V to 14.8V)
- Power Output: 500W – 700W (Approximate)
- Max Thrust: ~900g on 3S, ~1100g on 4S
- Mounting Shaft Diameter: 3.0mm
- Weight: 88g (including motor and fan)
- Applications: Suitable for 64mm EDF jet models
- Material: Durable nylon plastic (fan), aluminum alloy (motor casing)
- Recommended ESC: 40A to 60A (depending on battery setup)
- Connector Type: 3.5mm bullet connectors
- RPM Range: 25,000 – 35,000 RPM (depending on input voltage)
Package Includes:
- 1 x QX Motor 64mm EDF Unit (12 Blades)
- 1 x QF2822-3500KV Brushless Outrunner Motor (Pre-installed)
- 3 x 3.5mm Bullet Connectors (Pre-installed on motor wires)
- 1 x Mounting Adapter
- 4 x Screws for secure mounting
